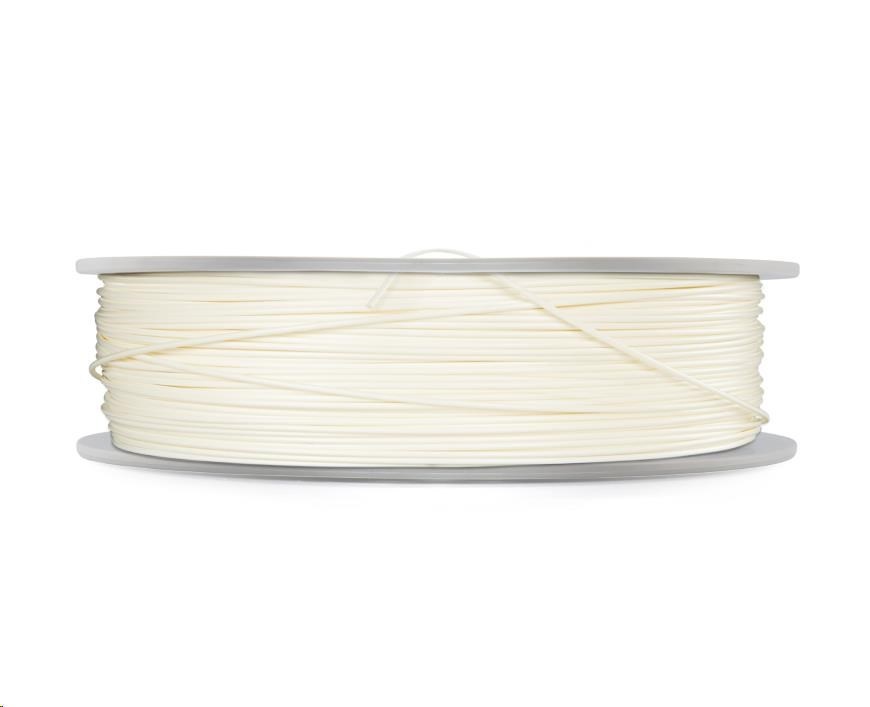

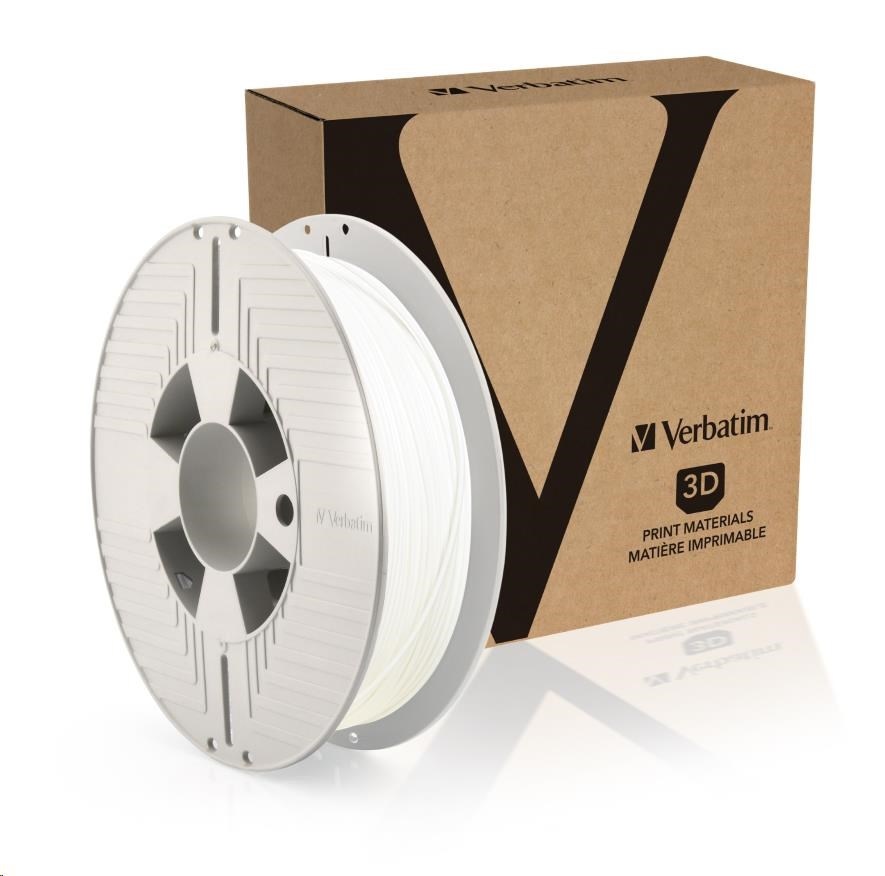

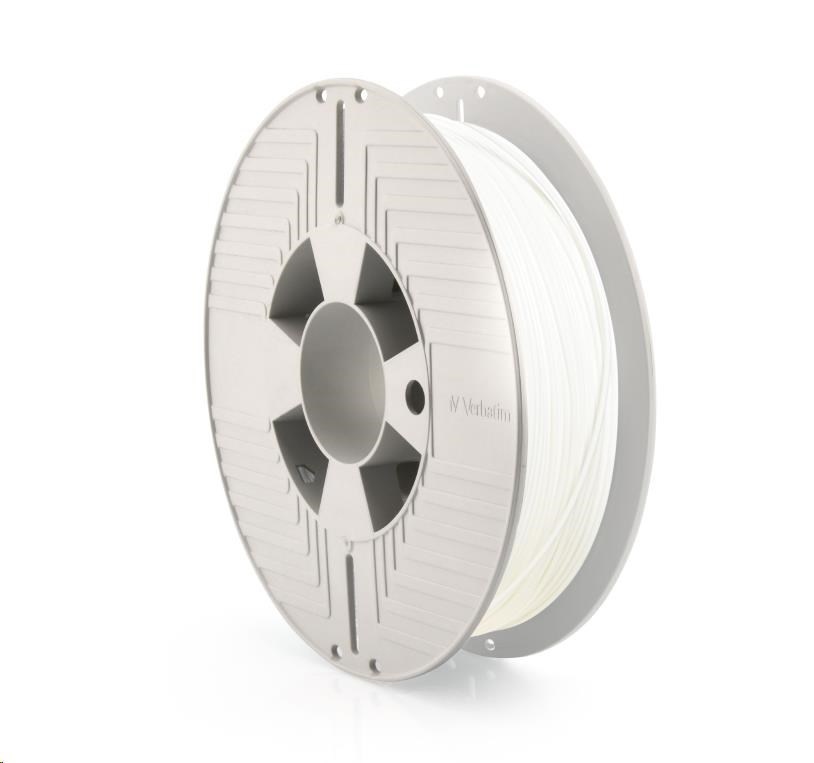

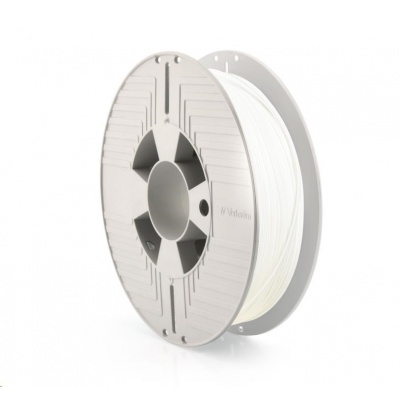

VERBATIM 3D Printer Filament BVOH 1.75mm, 182m, 500g transparent natural (55901)
Popis
Parametry
Hlídací pes
Verbatim BVOH filament 1.75 mm - Transparent
A high quality water soluble support material that can be used with a number of different polymers and easily dissolved in cold water. This environmentally-friendly material provides support for printing objects with overhangs or particularly complex structures. Verbatim BVOH follows the tightest quality controls as standard, ensuring excellent layer-forming and adhesion properties.
Features
- Butenediol Vinyl Alcohol Co-polymer (BVOH) for material extrusion
- Water dissolvable support material
- Waste can be disposed with household effluent**
- Excellent layer-forming, emulsifying, adhesive
- Best in combination with ABS, PLA, and PET material
- Light- and UV-sensitive
- High solubility
- Main applications: Support material for filaments, printing projects with overhangs or complex objects
**>20 times weight of water to this material required for disposal (i.e >20cc water to 1g BVOH) with a maximum of 2kg of BVOH per day. When more BVOH is to be used per day, professional organic effluent treatment will be required.
TECHNICAL SPECIFICATIONS
Diameter accuracy | 1.75 mm ± 0.07 mm |
Material net weight | 0.5 kg |
Filament length | 182 m |
Melt temperature | 176 °C |
Melt Flow Rate @ 230 °C, 21.1N | 7.5 g/(10 minutes) |
Density | 1.14 g/cm3 |
Viscat softening temperature | 92 °C |
Glass transition temperature | 68 °C |
Flexural strength | 71 MPa |
Flexural modulus | 2900 MPa |
Tensile Strength | 45 MPa |
Tensile Elasticity | 9.0% |
SPOOL DIMENSIONS | |
Spool diameter | 200 mm |
Spool depth | 72 mm |
Hub diameter | 102 mm |
Hub hole diameter | 51 mm |
RECOMMENDED PRINTER SET UP | |
Extrusion temperature | 210±10 °C |
Bed temperature | 60 °C |
Printing speed | 30 mm/s |
.
Barva:
Průhledná
Typ materiálu:
BVOH
Průměr struny:
1,75 mm
Pracovní teplota:
210 - 235 °C
Balení:
500 gramů
Aktuální cena produktu je2349Kč
s dph
