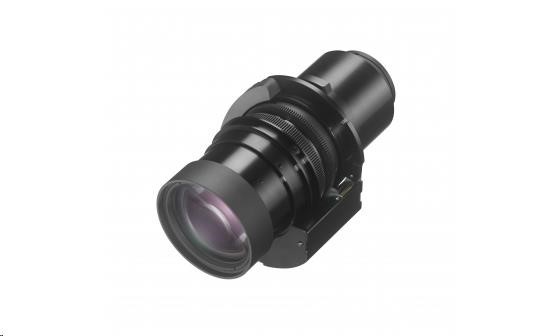

SONY Zoom Lens VPL-FHZ65, FHZ60, FH65 & FH60 (WUXGA 3.18 to 4.84:1)
Technical Specifications
| *
| Please be aware that the features/specifications can differ from country to country
|
Display system
| 3 LCD system
|
Display device
| Size of effective display area
| 0.63” (16.0 mm) x 3, BrightEra, Aspect ratio: 4:3
|
| Number of pixels
| 2,359,296 (1024 x 768 x 3) pixels
|
Projection lens
| Zoom
| x1.05
|
| Focus
| Manual
|
| Lens Shift
| V: +/ 4%, H: +/- 3%
|
Throw Ratio
| 0.34 - 0.36:1
|
Digital Zoom
| x4
|
Light source
| High-pressure mercury lamp 210 W type
|
Recommended lamp replacement time*1
| 3000 H / 4500 H / 6000 H
| (Lamp mode: High / Standard / Low)
|
Filter cleaning cycle*
| Max. 6000 H
| Same time as the lamp replacement is recommended
|
Screen size
| 60” to 110” (1.53m to 2.8 m)
|
Light output (Lamp mode: High / Standard / Low)
| 3000 lm / 2400 lm / 2000 lm
|
Colour light output
| 3000 lm / 2400 lm / 2000 lm
|
Contrast ratio (full white / full black)*
| 2500:1
|
Fan noise
| 28dB (low)
|
Speaker
| 16 W x 1 (monaural)
|
Displayable scanning requency
| Horizontal
| 15 kHz - 92 kHz
|
| Vertical
| 48 Hz - 92 Hz
|
Display resolution
| Computer signal input
| Maximum input signal resolution: 1600 x 1200 (resizing display),
|
| Video signal input
| NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i
|
Colour system
| Auto / NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
|
Keystone correction
| Vertical: Max. +/- 5 degrees
|
OSD language
| 23-languages - English, Dutch, French, Italian, German, Spanish, Portuguese ,Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Hungarian and Indonesian, Persian)
|
Computer and video signal input/output
| INPUT A
| RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack
|
| INPUT B
| RGB input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack
|
| INPUT C
| HDMI (HDCP compatible) (Digital RGB/Y Pb Pr, Digital Audio)
|
| S VIDEO IN
| S video input connector: Mini DIN 4-pin, Audio input connector: RCA (shared with VIDEO IN)
|
| VIDEO IN
| Video input connector: Pin jack, Audio input connector: RCA (shared with S VIDEO IN)
|
| OUTPUT
| Monitor output connector*3: Mini D-sub 15-pin (female), Audio output connector*4: Stereo mini jack (variable out
|
| USB
| Type A and Type B
|
| Wireless
| Optional (IFU-WLM3)
|
| Microphone
| Yes (mini jack)
|
| Control
| RS-232C connector: D-sub 9-pin (male) LAN connector: RJ45, 10BASE-T/100BASE-TX
|
Operating temperature (Operating humidity)
| 0°C to 40°C / 32°F to 104°F
| (35% to 85% (no condensation))
|
Storage temperature (Storage humidity)
| -20°C to +60°C / -4°F to +140°F
| (10% to 90%)
|
Power requirements
| AC 100 V to 240 V, 3.1 A to 1.4 A, 50 Hz /60 Hz
|
Power consumption
| AC 100 V to 120 V
| 306W / 259W / 230W (High / Standard / Low)
|
| AC 220 V to 240 V
| 369W / 248W / 220W (High / Standard / Low)
|
Standby mode power consumption
| AC 100 V to 120 V
| 7.5W / 0.5 W (Standby mode: Standard / Low)
|
| AC 220 V to 240 V
| 7.9W / 0.5 W (Standby mode: Standard / Low)
|
Heat dissipation
| AC 100 V to 120 V
| 1,044 BTU
|
| AC 220 V to 240 V
| 1,010 BTU
|
Standard outside dimensions
| W 384.4 x H 161.1 x D 423.4 mm / W 15 1/8 x H 6 11/32 x D 16 21/32 in
|
Mass (without wall mount)
| 6.9kg / 15lb 3oz (without wall mount.)
|
Supplied accessories
| Wall Mount Bracket
| |
| RM-PJ7
| Remote Commander (1)
|
| CR2025
| Lithium Battery (1)
|
| Mini D-sub 15-pin cable
| (1)
|
| Lens Cap
| (1)
|
| Operating Instructions
| (1)
|
| WEEE
| |
| EU Battery Info
| |
| Service Documentation
| |
| Quick Reference Manual
| (1)
|
Optional accessory
| LMP-E212 Projector Lamp
|
