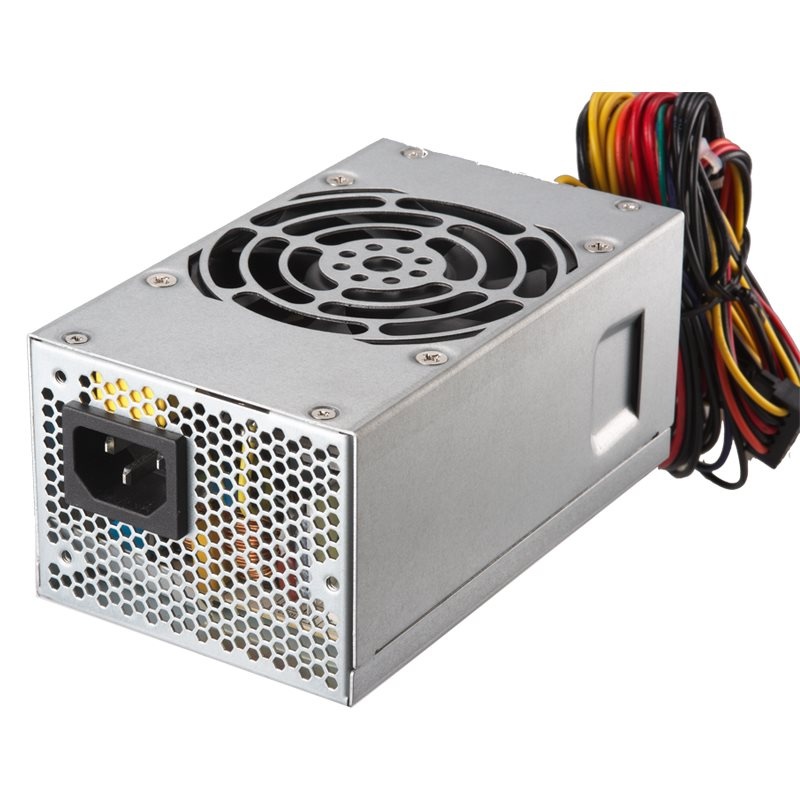

SEASONIC zdroj 300W SSP-300TBS F0, TFX, 80+ Bronze
Popis
Parametry
Hlídací pes
Features:
- SATA-ready
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- Fanless Mode (up to 30 % system load)
Specifications:
| DC Outputs | |||||||
|---|---|---|---|---|---|---|---|
| +3.3 V | +5 V | +12 V1 | +12 V2 | -12 V | +5 V sb | Total continuous power | Input Type |
| 14 A | 17 A | 18 A | 18 A | 0.8 A | 2 A | 300 W | Full Range |
| 110 W | 252 W | 9.6 W | 10 W | ||||
| Specifications | |
|---|---|
| Input frequency | 47 - 63 Hz |
| Inrush current at cold sta | 100 A max. |
| Efficiency (at normal input voltage) | ? 85 % |
| Line regulation | ± 1 % (typical) |
| Load regulation | ± 5 % (typical) |
| Cross regulation | ± 5 % (typical) |
| Ripple / noise | 1 % |
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
| Power Factor Correction | 95 % (typical) |
Formát zdroje:
TFX
Konektory:
FDD
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ne
Výkon zdroje (W):
300
Aktuální cena produktu je1233Kč
s dph
