Manhattan HDMI rozdělovač, 1080p 2-Port HDMI Splitter, USB Powered, černá

Přidat do oblíbenýchManhattan HDMI rozdělovač, 1080p 2-Port HDMI Splitter, USB Powered, černá
Specifikace kabelu / redukce:Adaptér, Redukce.

Kód produktu254971
Part number207652
EAN produktu766623207652

Záruka:24 Měsíc(ů)
Výrobce:Manhattan
Skladová dostupnost:Na dotaz
Běžná cena
776 Kč
Vaše cena bez DPH
482.64 Kč
Vaše cena včetně DPH
584 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

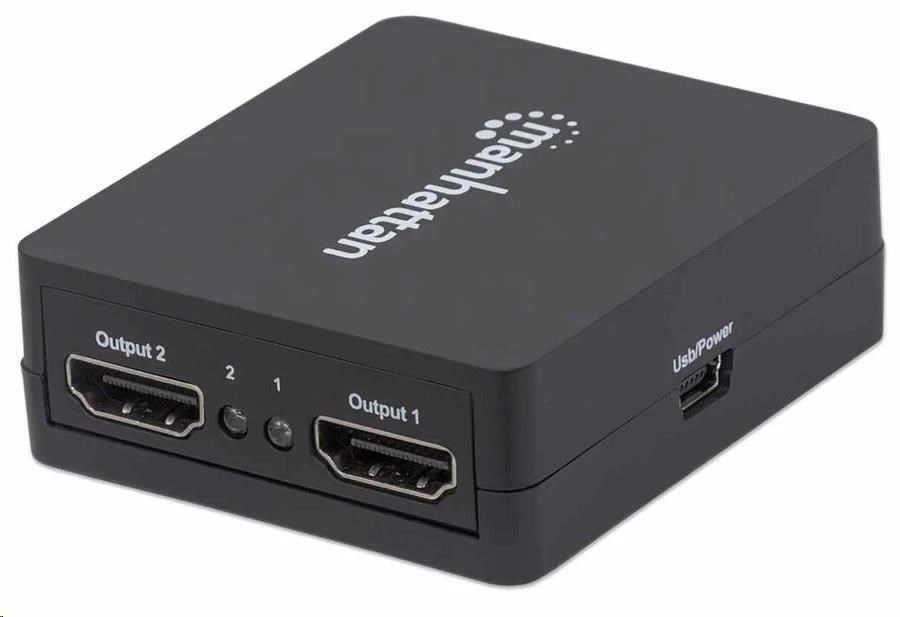

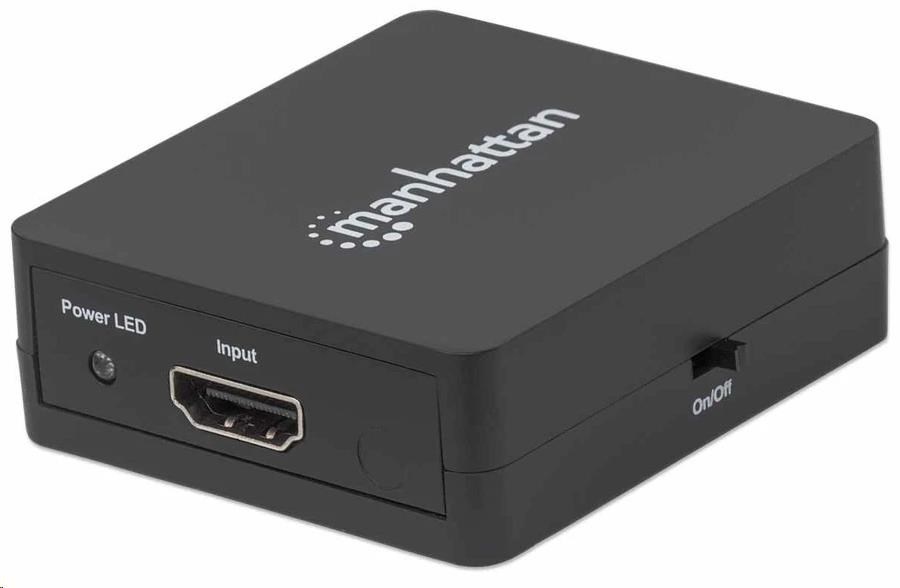

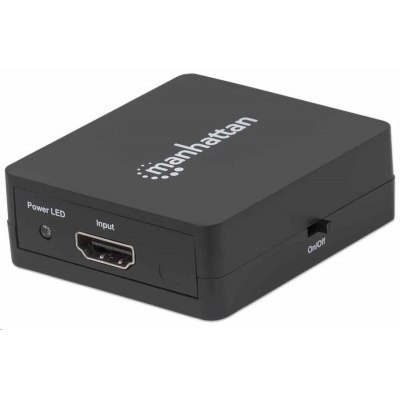

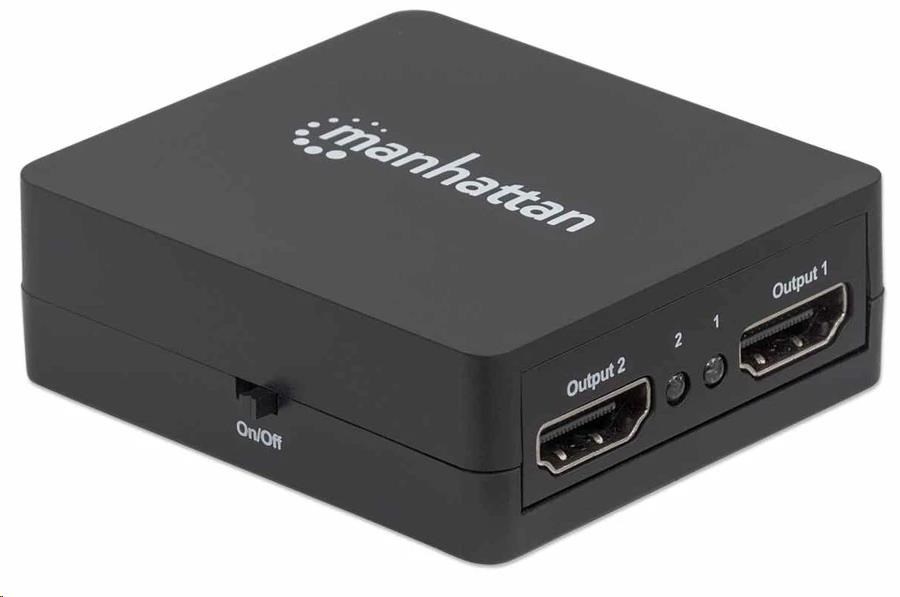

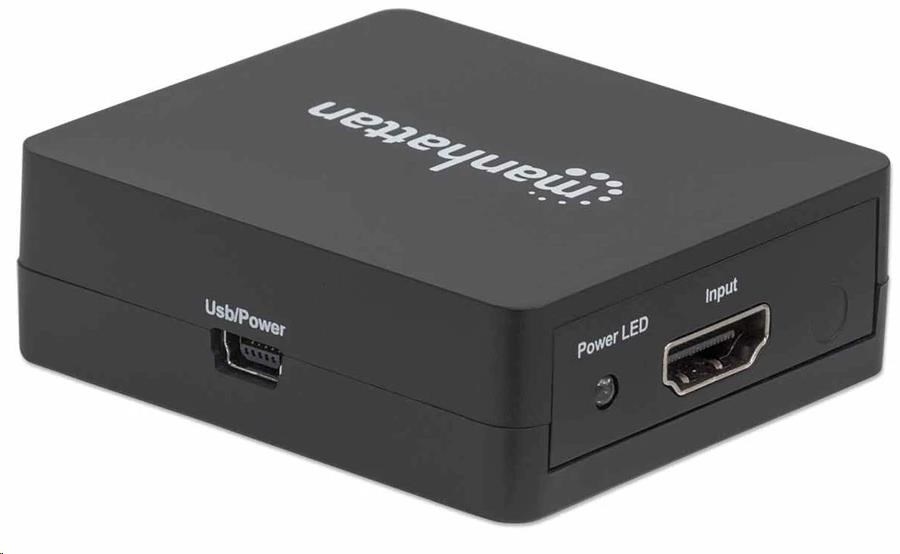

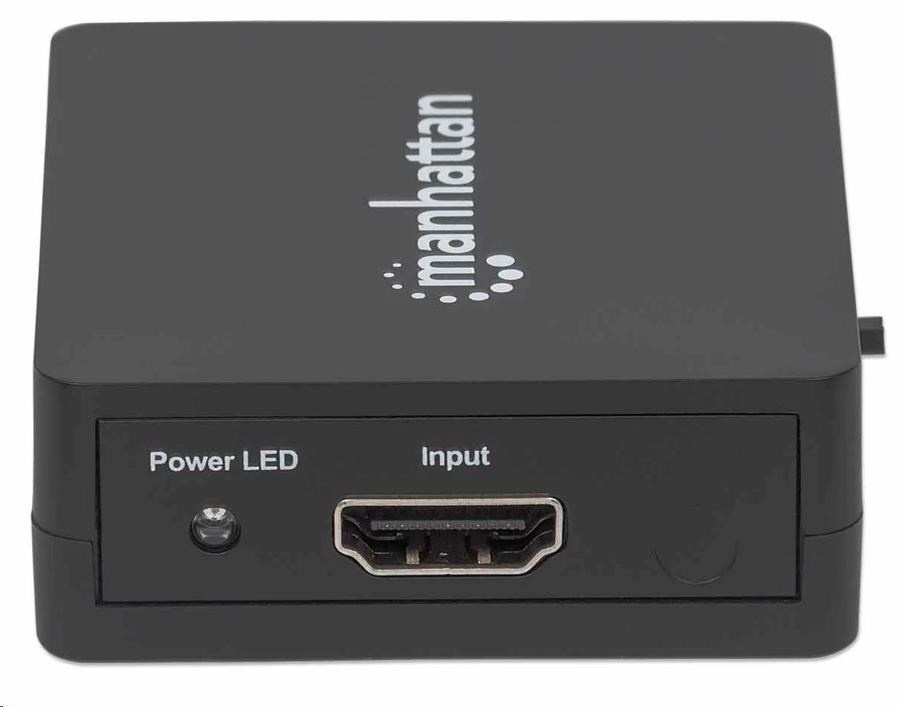

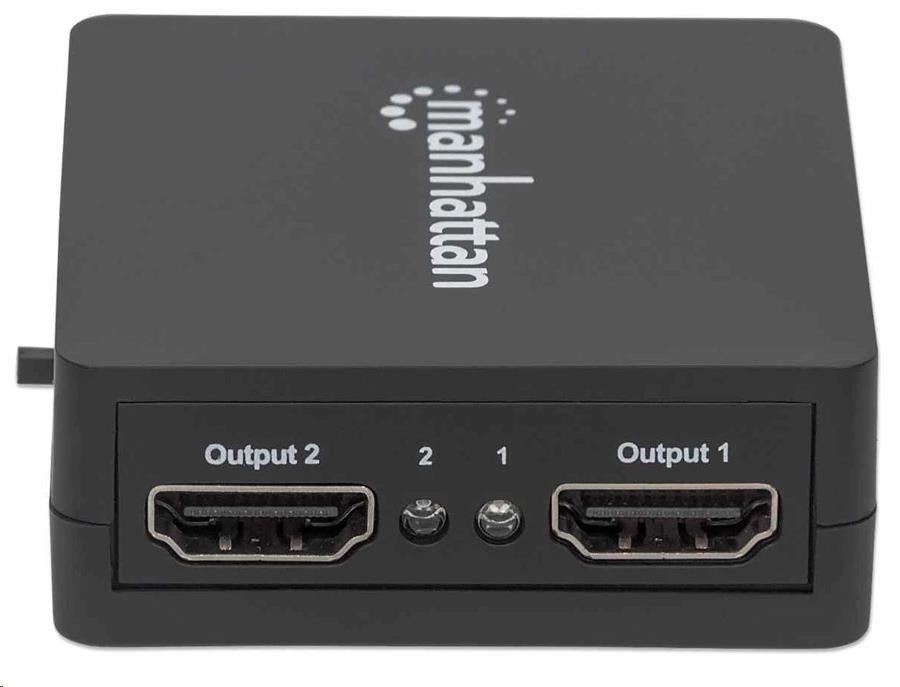

1080p 2-Port HDMI Splitter

Easily distribute a single HDMI signal to multiple displays.The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. Flexible Solution for Many A/V ApplicationsIdeal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications.Quality Construction and Easy InstallationFull compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.

  • Displays video from one HDMI source on two HD displays
  • Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more
  • Cascadable up to three levels to expand signal distribution to more displays
  • HDCP compliant
  • Supports LPCM, DTS@ Digital, DTS-HD Master Audio and Dolby TrueHD audio
  • Supports 1080p HD resolution, 3D video and Deep Color
  • Supports the video amplifier bandwidth up to 2.25 Gbps
  • Plug-and-play installation; no special setup or remote
  • Gold-plated contacts for corrosion-free connections
  • Three-year warranty

TECHNICAL SPECIFICATIONS

Standards and Certifications - HDCP 1.0 / 1.1 / 1.2
- DVI 1.0
- CE
- FCC
- RoHS2
Package Contents 1080p 2-Port HDMI Splitter
USB power cable
Quick Instruction Guide
General
Source-to-switch range up to 15 m (49 ft.)
Switch-to-display range up to 15 m (49 ft.)
Power 5 W; USB cable, 0.7 m (2.3 ft.)
Connections
Connections One HDMI female, 19-pin (input)
Two HDMI female, 19-pin (output)
One USB Mini-B female, 5-pin (input)
Signal Input/Output
Input video signal 0.5 – 1.0 V p-p
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 2.25 Gbps, 1920x1200, 1080p
Output video HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0
Frequency 2.25 Gbps / 225 MHz
Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p
Physical
Dimensions 60 x 54 x 20 mm (2.4 x 2.1 x 0.8 in.)
Weight 0.04 g (0.08 lb.)
Operating Environment
Operation Temperature 0 – 70°C (32 – 158°F)
Storage Temperature -10 – 80°C (14 – 176°F)
Operation Humidity (noncondensing) 10 – 85%
Storage Humidity (noncondensing) 5 – 90%

.
Specifikace kabelu / redukce: Adaptér, Redukce
Aktuální cena produktu je584Kč  s dph
