GIGABYTE MB Sc AM4 B450 AORUS ELITE V2, AMD B450, 4xDDR4, 1xDVI, 1xHDMI
Popis
Parametry
Hlídací pes

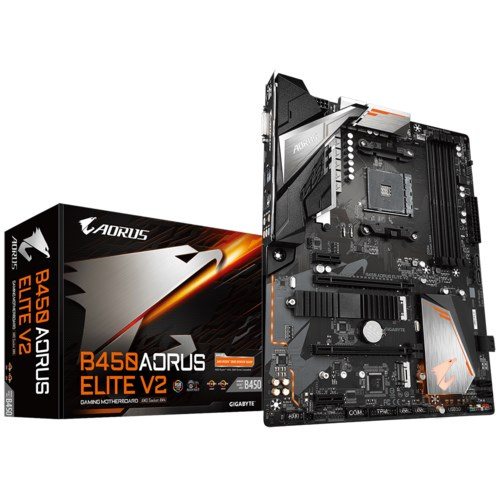

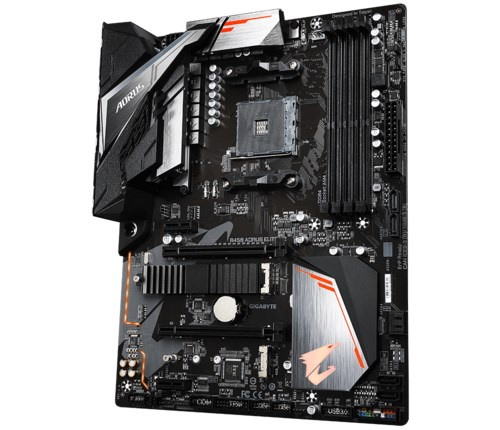

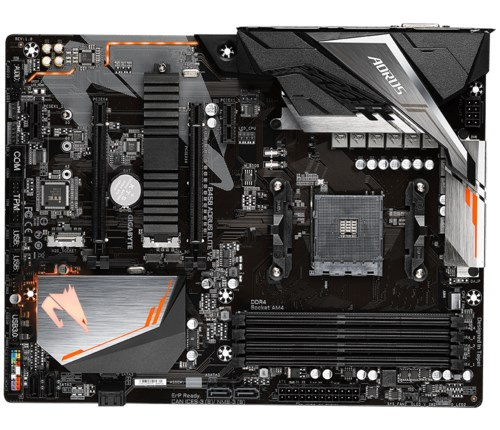

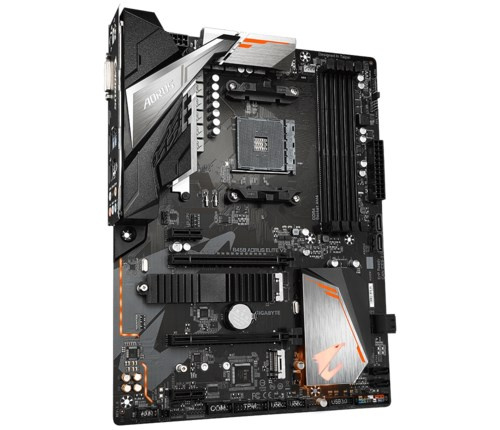

B450 AORUS Elite V2 (rev. 1.0)
AMD B450 AORUS Motherboard with 8+2 Phases Digital Team Power Design, Dual M.2 with One Thermal Guard, GIGABYTE Gaming LAN with Bandwidth Management, RGB FUSION 2.0, CEC 2019 Ready
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- HDMI, DVI-D Ports for Multiple Display
- Integrated I/O Shield of Ultra Durable™ Design
- Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Realtek GbE LAN with Bandwidth Management
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
TECHNICAL SPECIFICATIONS
| CPU | AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD B450 |
| Memory | - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Audio | - Realtek® ALC892 codec - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. | |
| 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) | |
| Onboard Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB (Note) Actual support may vary by CPU. |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) - 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| USB | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Integrated in the APU: 4 x USB 3.1 Gen 1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip extension cable header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

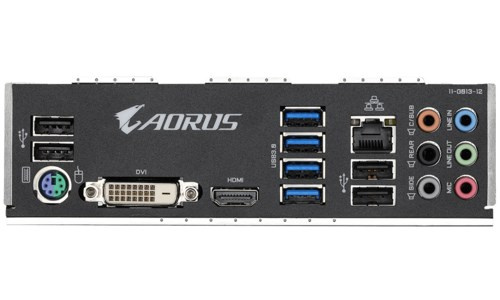

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer - Support for Q-Flash - Support for Xpress Install |
| Bundled Software | - Norton® Internet Security (OEM version) - Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 23.5cm |
| Remark | - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. - Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Chipset:
AMD
Chipset:
AMD B450
PCI Express x16:
2
Podpora RAID:
1
Podpora RAID:
10
Podpora RAID:
0
COM port:
Ne
LPT port:
Ne
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
4
DisplayPort:
0
TPM:
Ano
USB 2:
8
USB 3:
6
PCI:
0
M.2 slot:
2
SATA 3:
6
VGA:
0
DVI:
1
HDMI:
1
Led Header:
Ano
PCI Express x1:
2
USB C:
0
LAN:
1Gbit/s
Aktuální cena produktu je3231Kč
s dph
