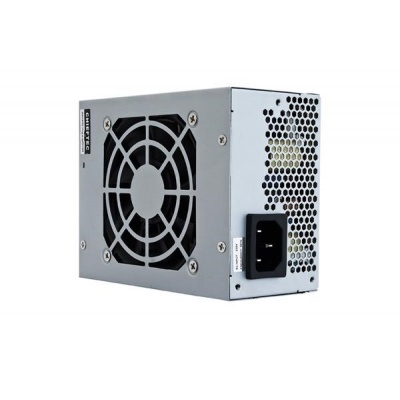

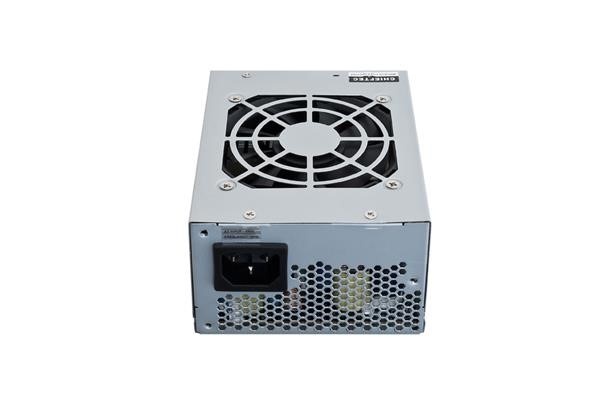

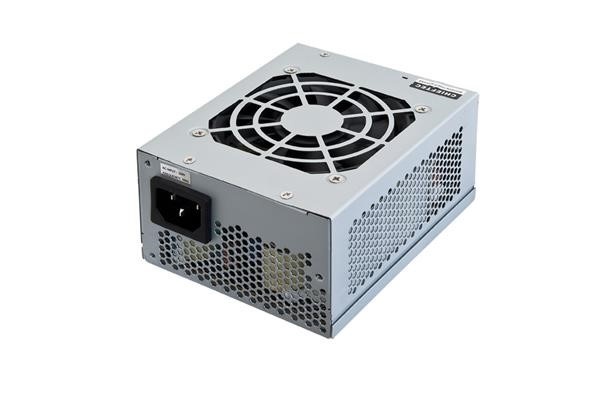

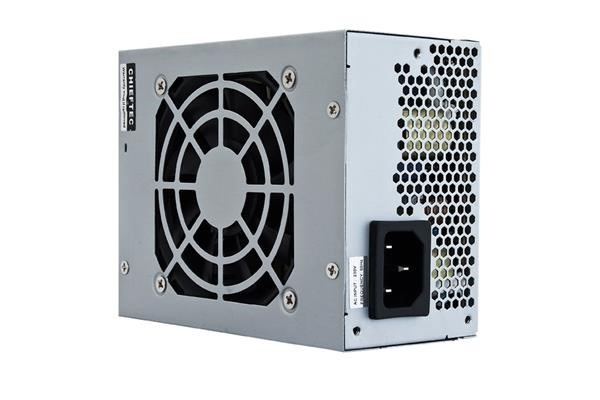

CHIEFTEC zdroj SFX 350W, 90 ° rotated layout, active PFC, 8cm fan,> 85% efficiency, 230V
Popis
Parametry
Hlídací pes
http://www.chieftec.eu/en/psus/smart-series/sfx-350bs-l.html
The SFX-350BS-L is a special version with a layout turned around by 90o in comparison to regular SFX power supplies. The SFX-350BS-L is always used when the space is very tight. The SFX-350BS-L convinces by its 350W performance and an efficiency of over 85%. Its Ultra Silent fan is powerful enough to give up other case fans.
Performance
| AC Input: | 230V / 3A |
| Frequency: | 50 Hz |
| +5V: | 15A |
| +3,3V: | 16A |
| +5V & +3,3V combined: | 105W |
| +12V 1: | 18A |
| +12V 2: | 18A |
| +12V 1 & +12V 2 combined: | 324W |
| +12V 3: | N/A |
| +12V 4: | N/A |
| +12V 3 & +12V 4 combined: | N/A |
| P.F.: | >0,9 |
| -12V: | 0,3A / 3,6W |
| +5VSB: | 3A / 15W |
| Maximum Load: | 350W |
Connectors
Native cable:
| 20+4PIN: | |
| ===300mm===[20+4PIN] | |
| SATA: | |
| ===300mm===[SATA]===100mm===[SATA] | |
| Molex/Floppy: | |
| ===300mm===[Molex]===100mm===[Molex]===100mm===[Floppy] | |
| 4PIN 12V: | |
| ===300mm===[4PIN 12V] | |
| 4PIN 12V: | |
| ===300mm===[4PIN 12V] | |
| Specification: | ATX 12V 2.3 |
| Form factor: | SFX |
| Efficiency: | >85% |
| Dimension (DxWxH): | 125 mm x 100 mm x 64 mm |
| PFC: | Active (0,9) |
| Fan dimension: | 80mm silent fan |
| Security: |
|
.
Formát zdroje:
ATX
Formát zdroje:
SFX
Konektory:
FDD
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
EPS 8-pin
Efektivita zdroje:
85+
Modulární kabeláž:
Ne
Výkon zdroje (W):
350
Aktuální cena produktu je1496Kč
s dph
