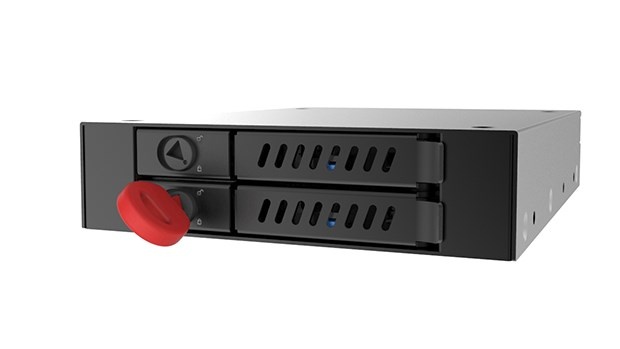

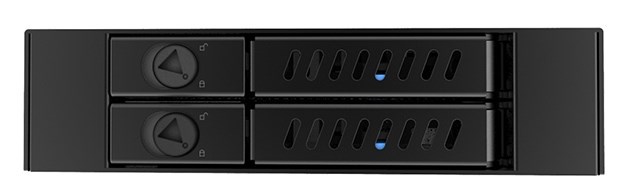

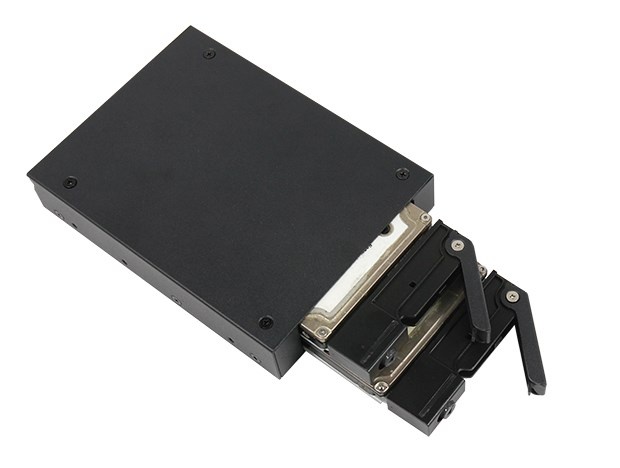

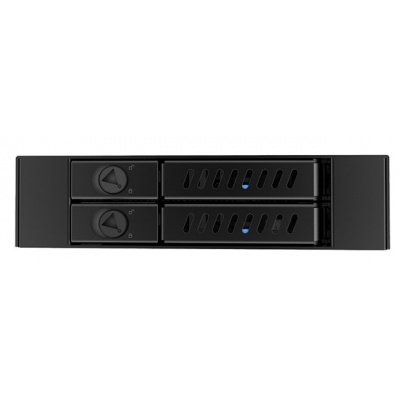

CHIEFTEC SATA Backplane CMR-225, 1x 3,5" bay for 2x 2,5" HDDs/SDDs
CMR-625 - The highly innovative backplane CMR-225 sets a new standard by providing 2x 2,5" HDD/SSD//SATA I /II/III mounting option using a 1x 3,5" external slot. Compatible with all 2,5" HDDs/SSDs (height: 7 ~ 9,5mm) it sources its power via the SATA connection offers LEDs to indicate HDD access and power while trays are detachable for easy installation. The case being 100% metal and lockable ensures maximum security. All installed discs are hot-swappable which makes it suitable for diverse applications.
Features:
Professional Data Backup
Hot Swap
Plug & Play compatible

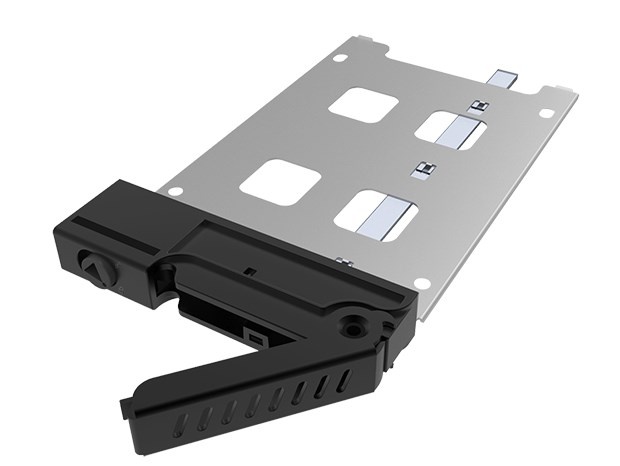

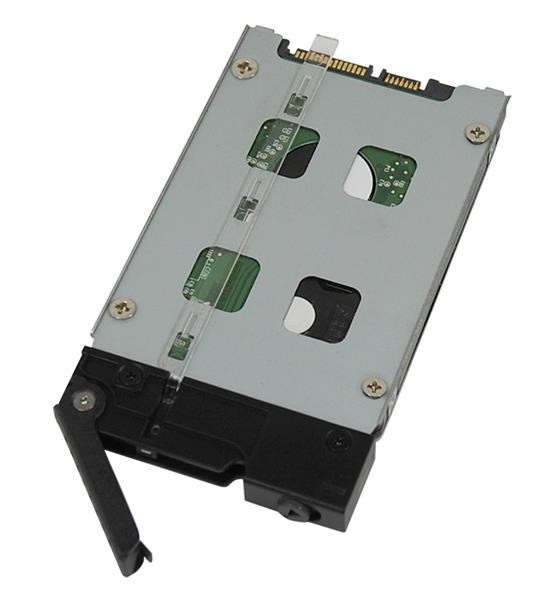

Lock mechanism for easy removal of storage media
Key Lock
| Interface (HDD/SSD): | SATA I, SATA II, SATA III |
| Dimension (DxWxH): | 137mm x 112mm x 26mm |
| Weight: | 0,394 kg |
| Form Factor: | 1x 3,5" bay for 2x 2,5" HDDs/SDDs (max. HDD/SSD height up to 9,5mm) |
| Cooling: | N/A |

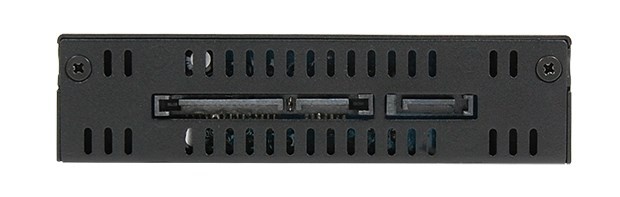

| Power Connector: | 1x SATA |
| Data Interface (ext.): | 2 x SATA |
| Material: | Full Metal structure |
| Special Features: | HDD LEDs |
| Scope of delivery: | SATA Backplane, 2x SATA cables, 2 keys, set of screws, User manual |
