ASUS MB Sc LGA1200 PRIME H510M-K R2.0, Intel H470, 2xDDR4, 1xVGA, 1xHDMI, mATX
Popis
Parametry
Hlídací pes

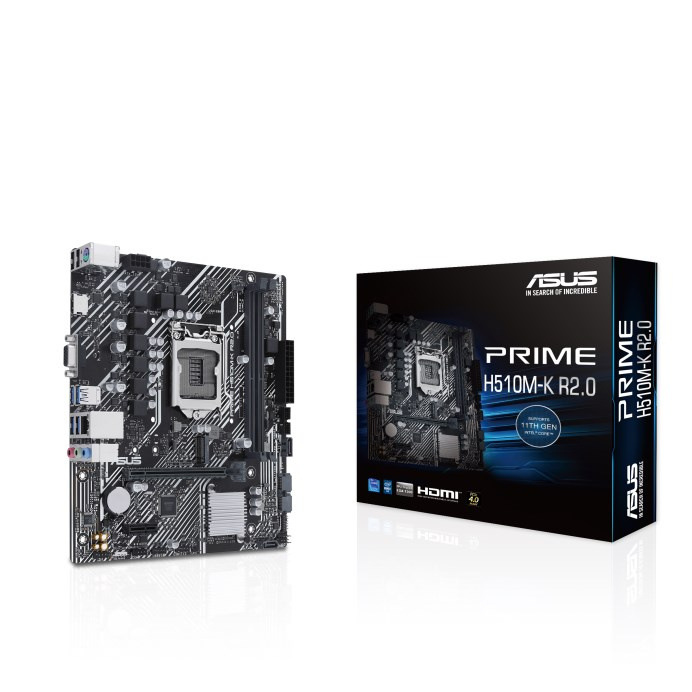

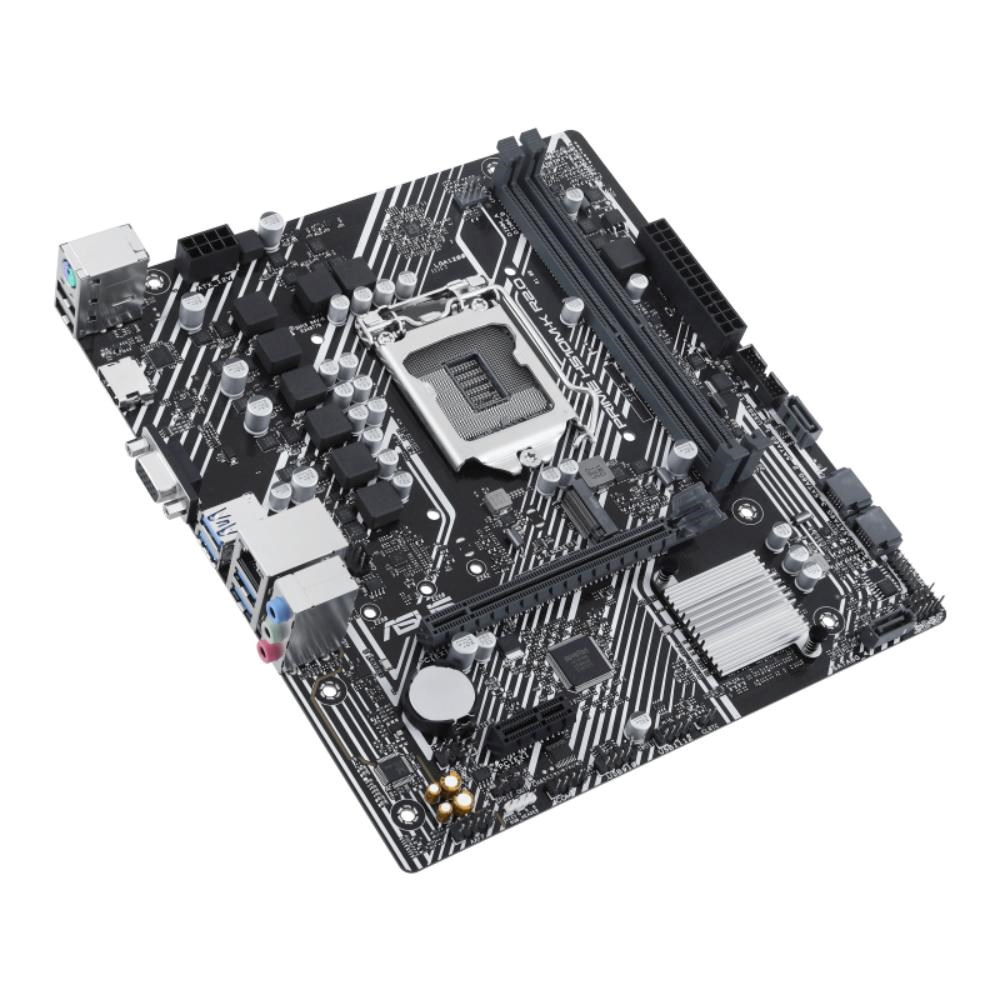

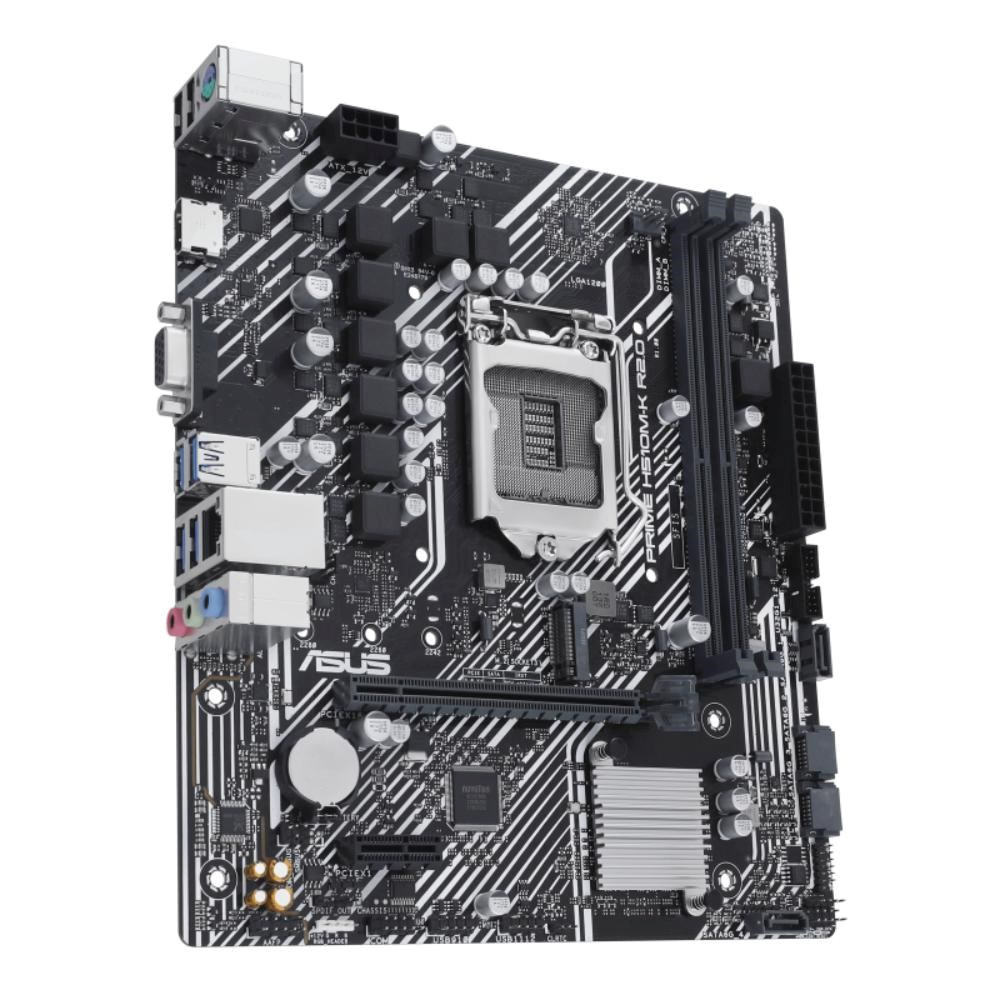

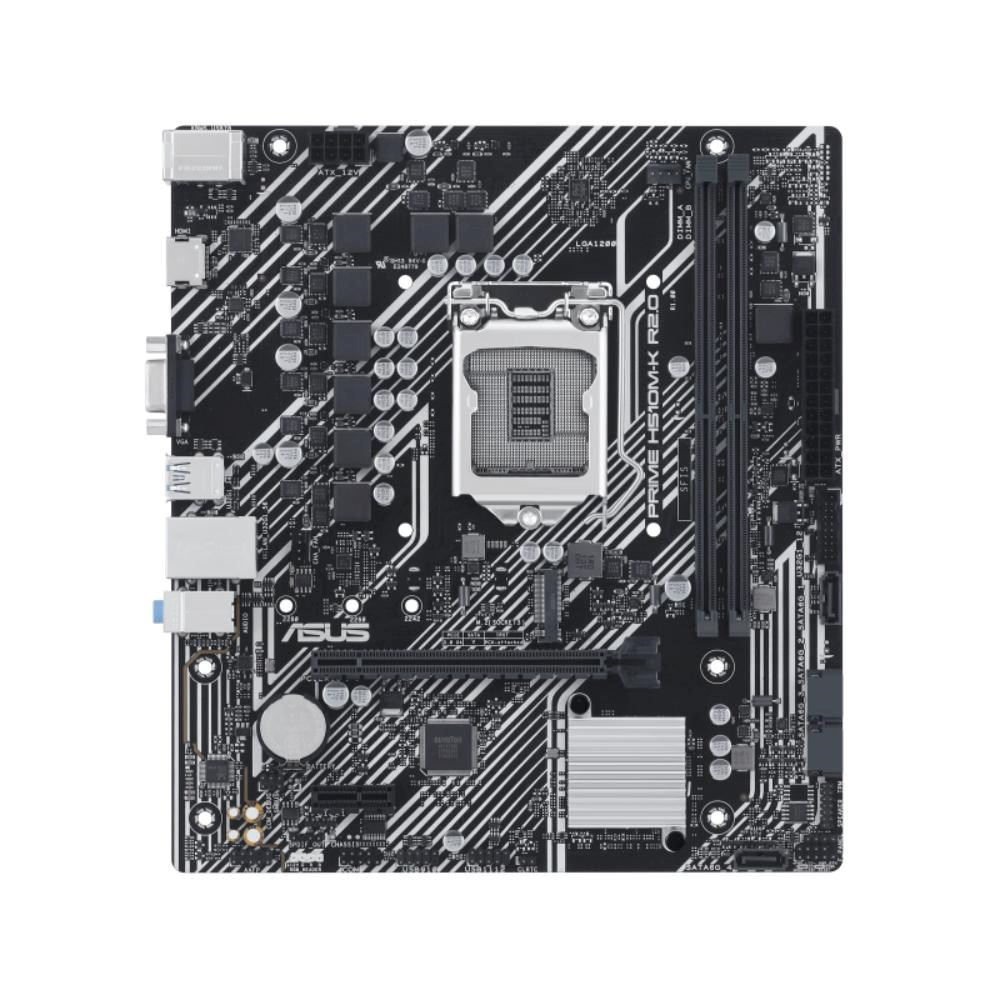

ASUS PRIME H510M-K R2.0
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
- Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
- Comprehensive cooling: PCH heatsink and Fan Xpert
- 5X Protection III: Multiple hardware safeguards for all-round protection
![](https://edshop.edsystem.cz/IMGCACHE/_1653/1653483_0a.jpg)
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H470 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Graphics
1 x VGA port 1 x HDMI™ port** * Graphics specifications may vary between CPU types. ** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset 1 x PCIe 3.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

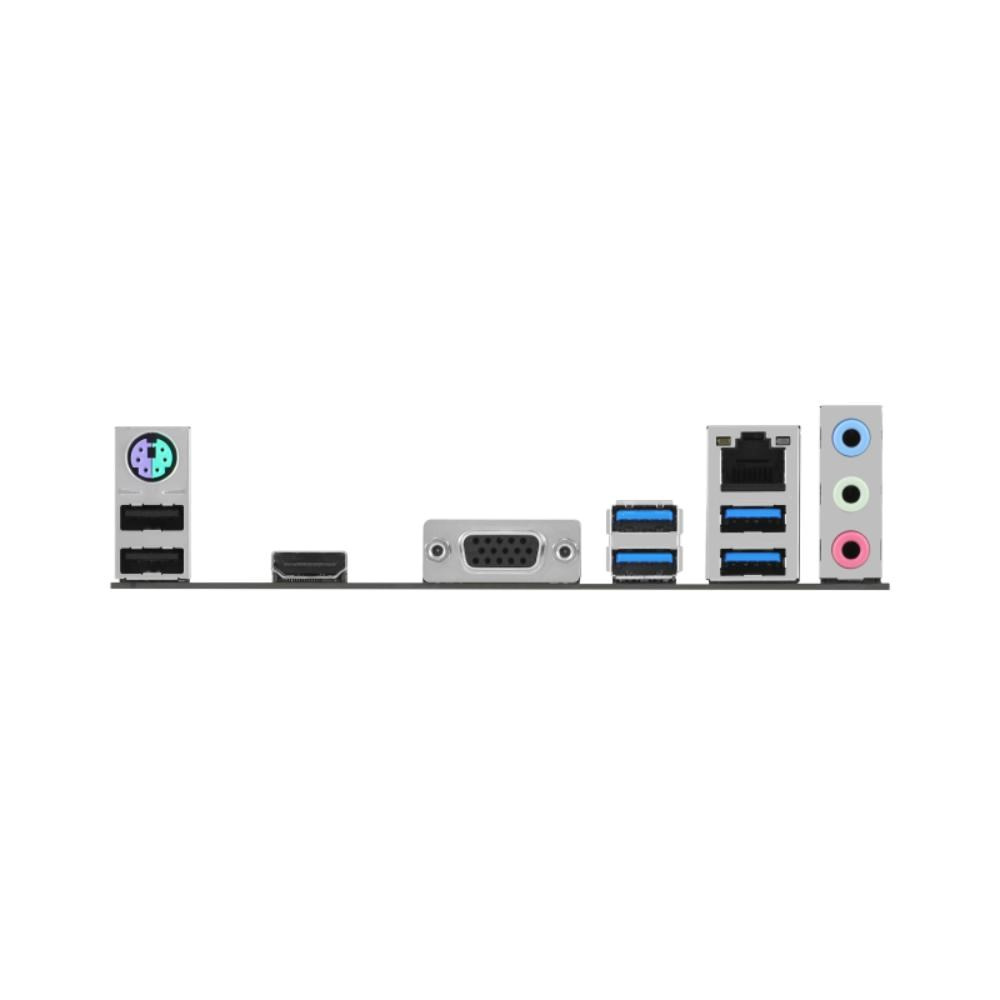

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Software Features
ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

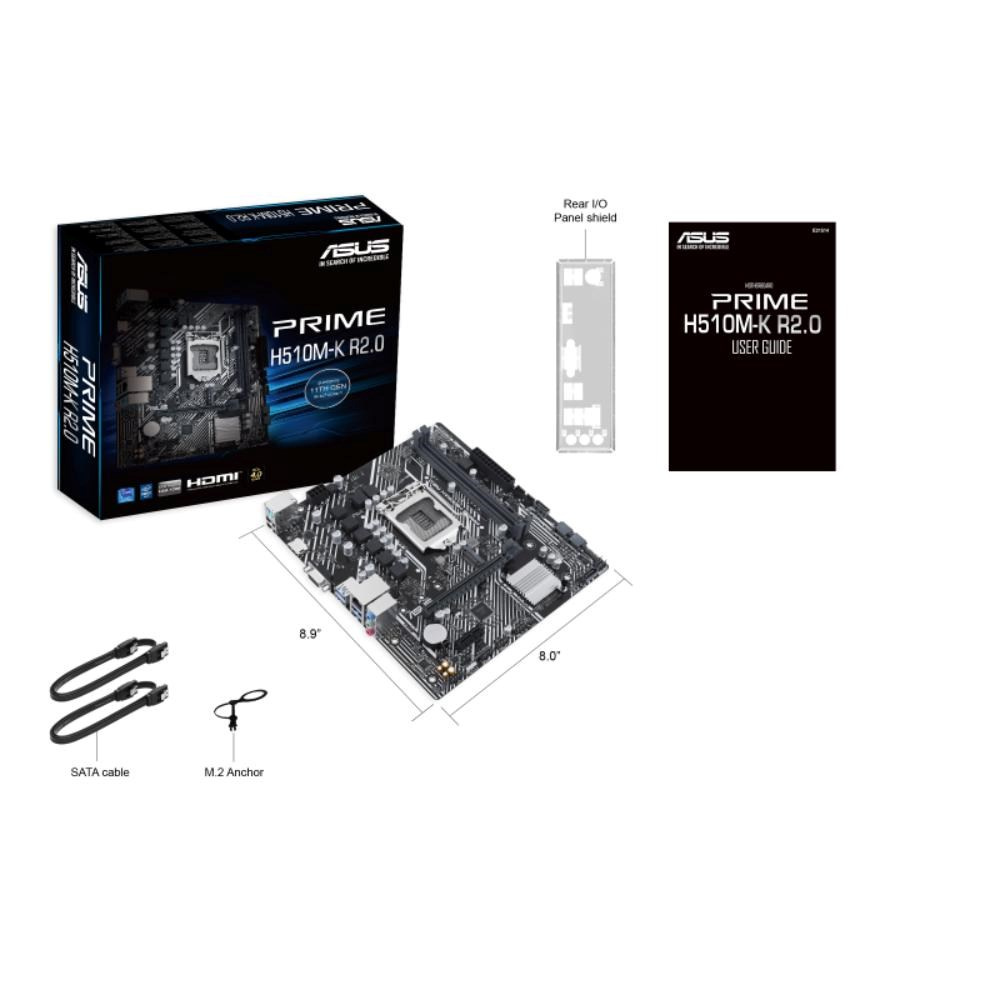

Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Anchor Documentation 1 x User guide
Operating System
Windows® 10 64-bit
Form Factor
micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1200
Chipset:
Intel
Chipset:
Intel H470
PCI Express x16:
1
Podpora RAID:
Bez RAID podpory
COM port:
Ano
LPT port:
Ne
Formát základní desky:
micro ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Intel
Počet paměťových slotů:
2
DisplayPort:
0
TPM:
Ne
USB 2:
6
USB 3:
6
PCI:
0
M.2 slot:
1
SATA 3:
4
VGA:
1
DVI:
0
HDMI:
1
Led Header:
Ano
PCI Express x1:
1
USB C:
0
LAN:
1Gbit/s
Aktuální cena produktu je2577Kč
s dph
