ASUS MB Sc AM4 PRIME B450M-K II, AMD B450, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX
Popis
Parametry
Hlídací pes

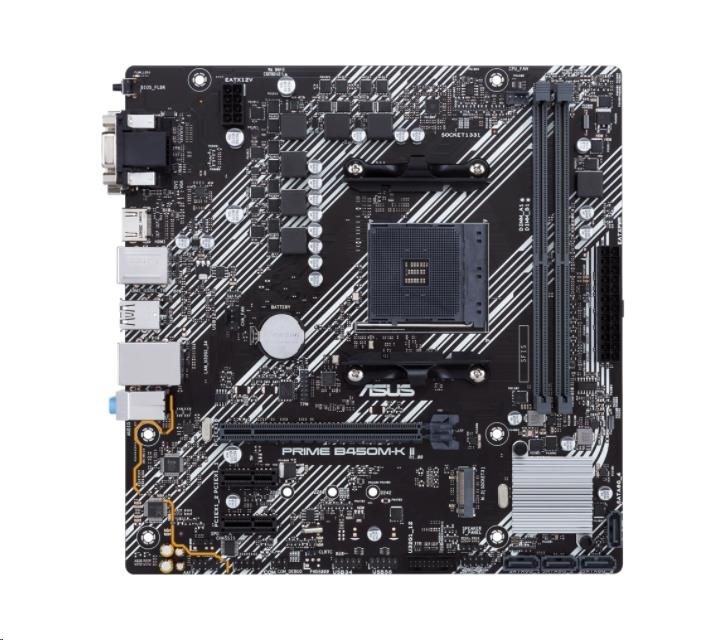

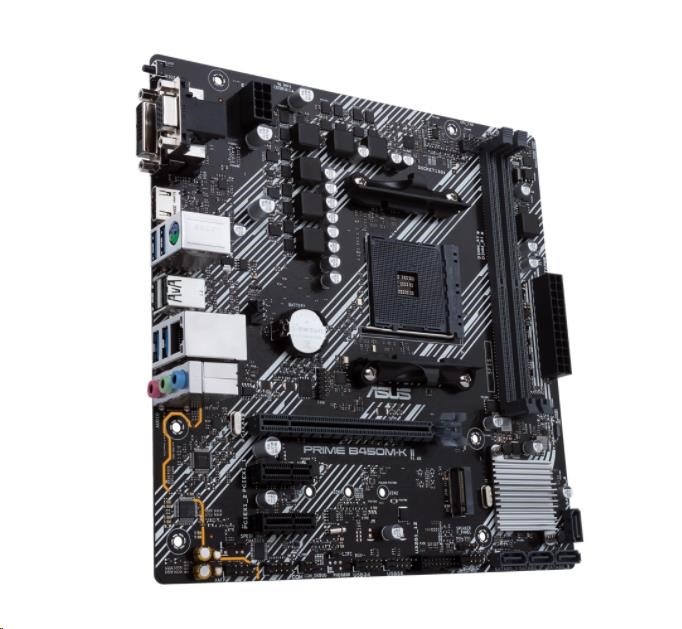

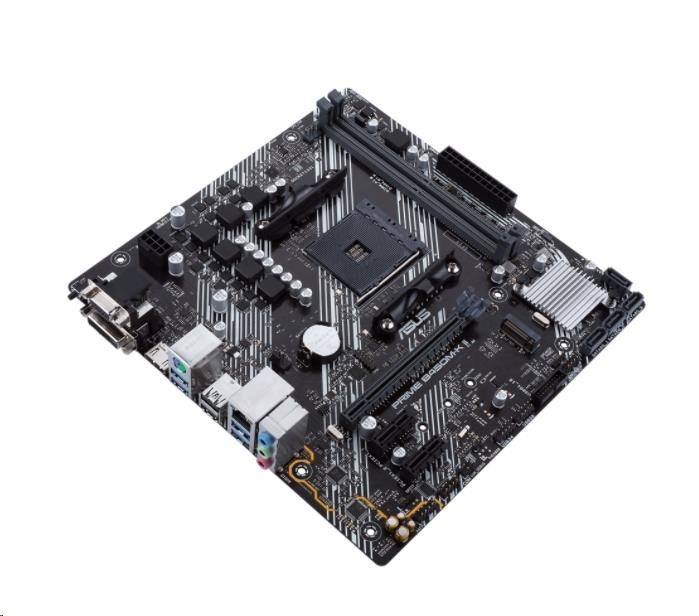

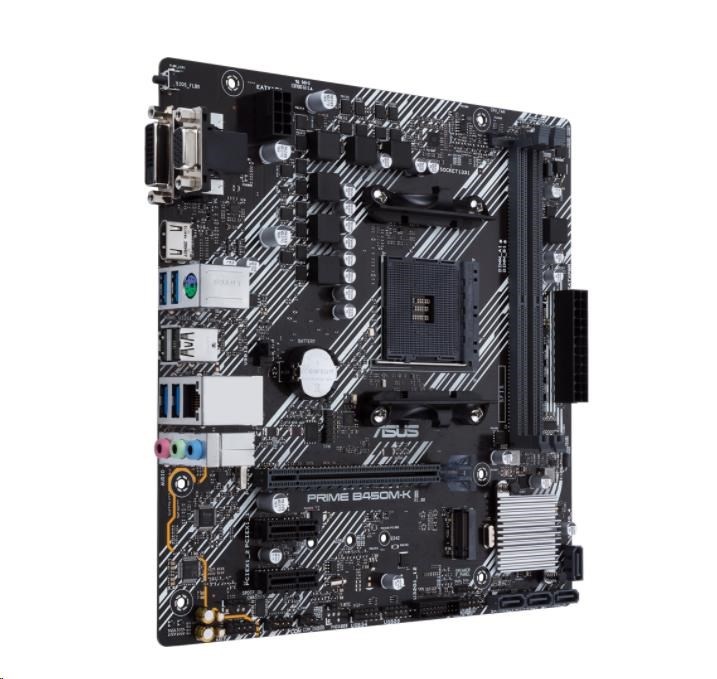

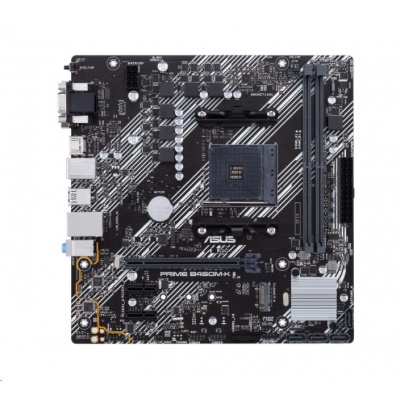

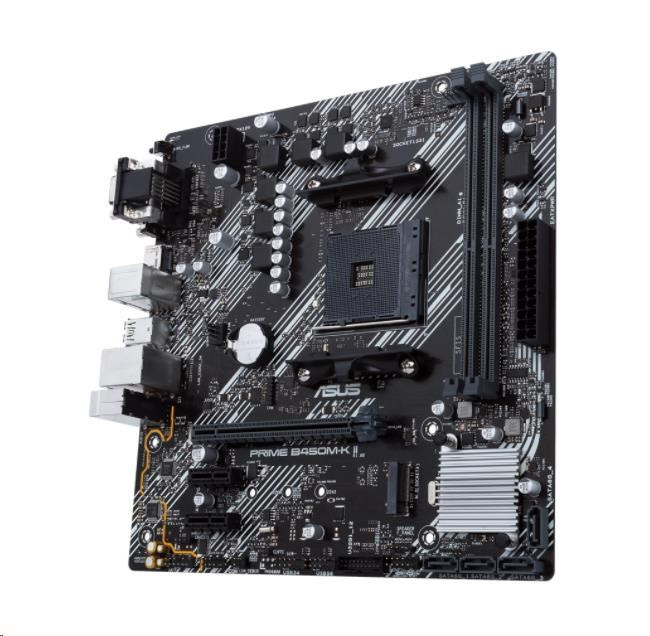

PRIME B450M-K II
AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A, BIOS FlashBack™
- Comprehensive cooling: PCH heatsink, and Fan Xpert
- Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A
- 5X Protection III: Multiple hardware safeguards for all-around system protection
- LED illumination: Lighting control for both PCIe slot and audio trace paths
TECHNICAL SPECIFICATIONS
| CPU | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors * * Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * 1 x D-Sub 1 x DVI-D 1 x HDMI 2.0b *Graphics specifications may vary between CPU types. |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
| Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek® RTL8111H ASUS LANGuard |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC * - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | Rear USB Port (Total 6) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) |
| Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) | |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert PC Cleaner - EZ update - System Information ASUS CPU-Z AI Charger ASUS EZ Installer DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED ASUS Lighting Control |

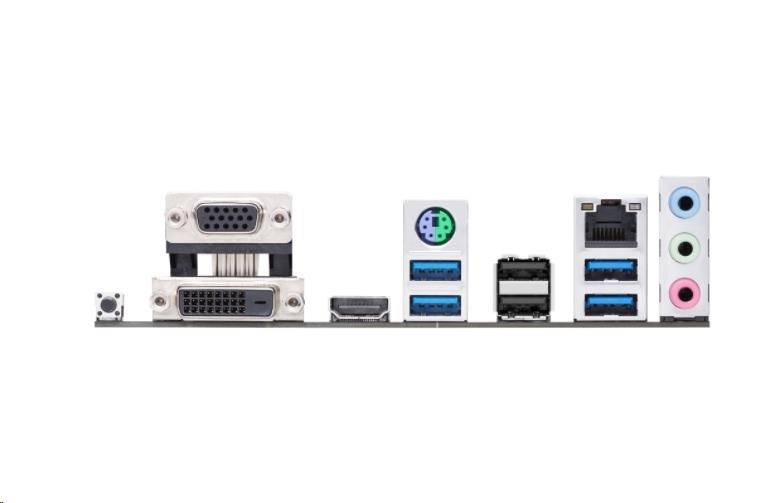

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |

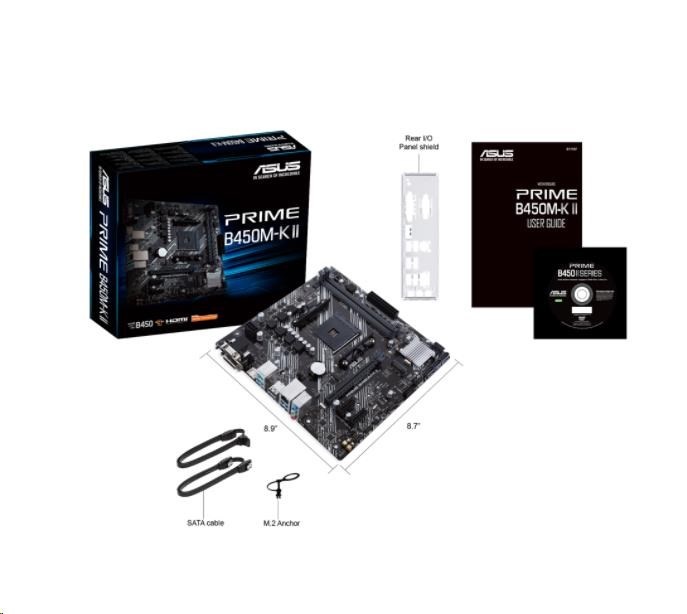

| Accessories | User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows® 10 64-bit Windows® 7 64-bit * |
| Form Factor | mATX Form Factor 8.9 x 8.7 inch (22.6 x 22.1 cm) |
| Note | *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor. |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Chipset:
AMD
PCI Express x16:
1
Podpora RAID:
1
Podpora RAID:
10
Formát základní desky:
micro ATX
3.5mm Jack:
Ano
Aktuální cena produktu je2526Kč
s dph
