ASUS MB Sc 2066 ROG STRIX X299-E GAMING II, Intel X299, 8xDDR4, Wi-Fi
Popis
Parametry
Hlídací pes

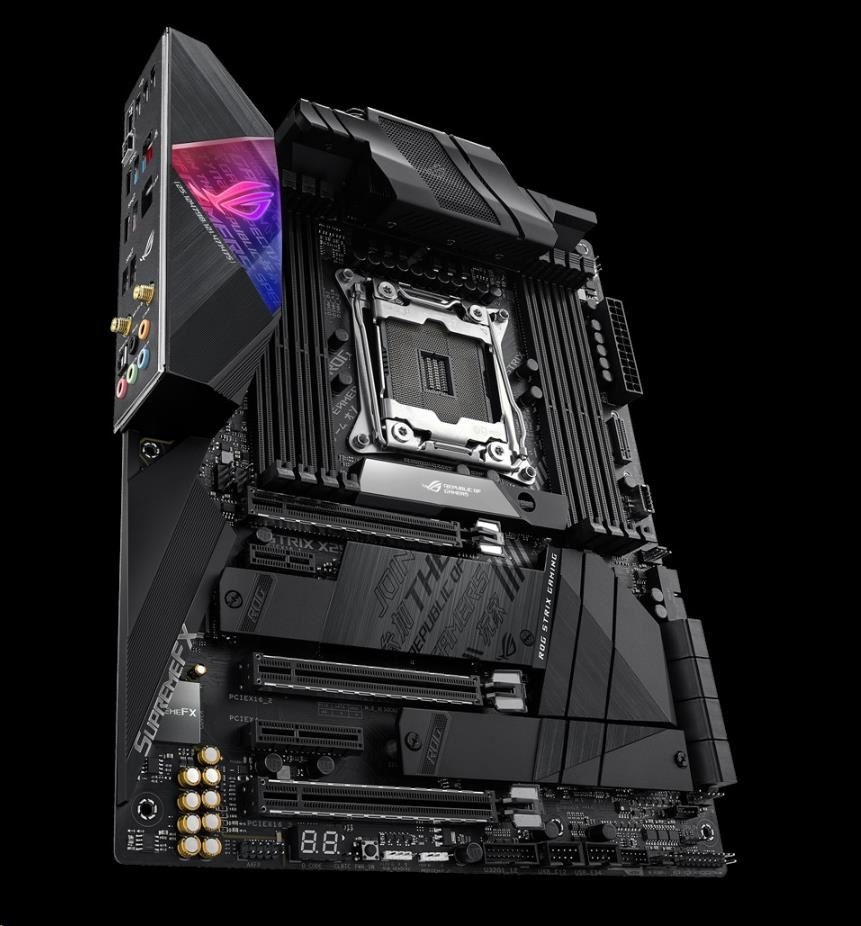

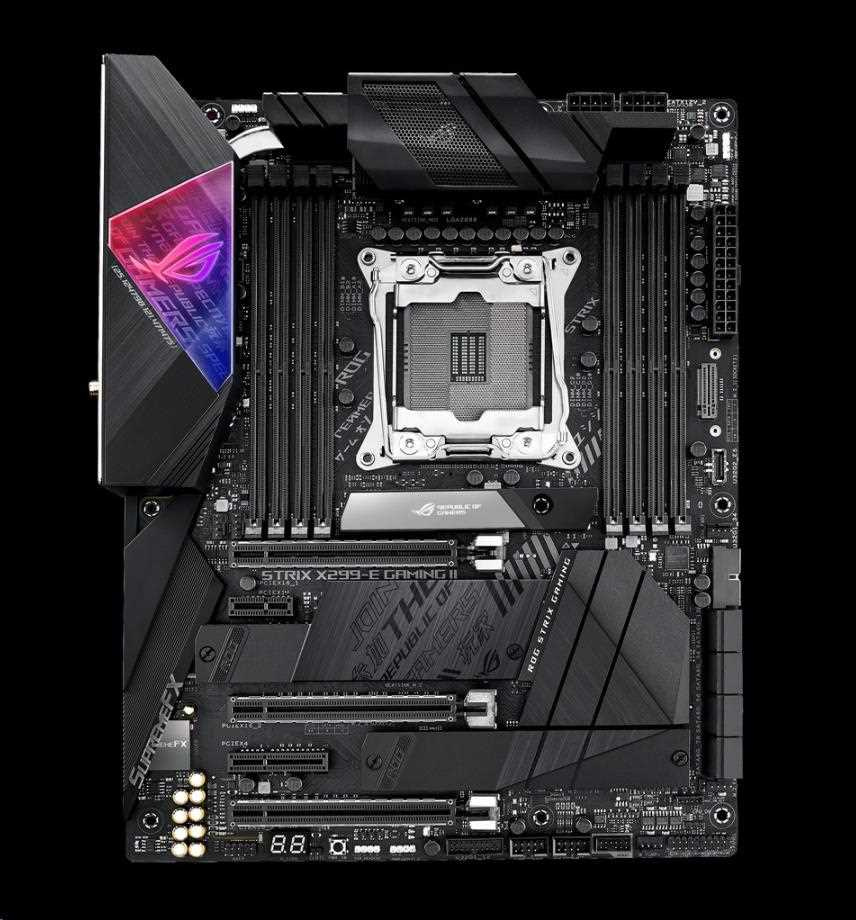

ROG Strix X299-E Gaming II
Intel X299 ATX motherboard LGA 2066 for Intel Core X-series processors, with 12 power stages, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, three M.2, OLED and Aura Sync RGB lighting
- Ready for the latest Intel® Core™ X-series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2, Intel® VROC and Intel® Optane™ memory compatibility
- Unmatched personalization: OLED and ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Optimal Power Solution: 12 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
- Comprehensive cooling: Active cooling VRM heatsink, stacked-fin heatsink, with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
- Gaming connectivity: Three M.2, USB 3.2 Type-C port and Type-C front panel connector
- Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
- AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
- Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
TECHNICAL SPECIFICATIONS
| CPU | Intel® Socket 2066 Core™ X-Series Processors |
| Chipset | Intel® X299 |
| Memory | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Multi-GPU Support | Supports NVIDIA® 3-Way SLI® Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 44-Lane CPU- Intel® Core™ X-Series Processors Family 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4) 28-Lane CPU- Intel® Core™ X-Series Processors Family 3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4) Intel® X299 Chipset 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1 *1 |
| Storage | Intel® Core™ X-Series Processors Family: 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 Intel® Virtual RAID on CPU(VROC) Intel® X299 Chipset: 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *3 |
| LAN | Intel® I219V Realtek® RTL8125-CG 2.5G LAN Anti-surge LANGuard ROG GameFirst Technology |
| Wireless Data Network | Intel® Wi-Fi 6 AX200 |
| Bluetooth | Bluetooth® 5.0 |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *4 Audio Feature: - SupremeFX Shielding™ Technology - DTS® Sound Unbound - Optical S/PDIF out port(s) at back panel - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer |
| USB Ports | ASMedia® USB 3.2 Gen 2 controller: 1 x USB 3.2 Gen 2 front panel connector port(s) ASMedia® USB 3.2 Gen 2 controller: 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (4 at back panel, 3 x Type-A+1 x Type-C) Intel® X299 Chipset: 6 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (2 at back panel, 4 at mid-board) Intel® X299 Chipset: 8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board) |
| ROG Exclusive Features | ROG CPU-Z Overwolf USB BIOS Flashback® ROG Exclusive Software - GameFirst V - Overwolf - Sonic Studio III + Sonic Studio Virtual Mixer |
| Special Features | OC Design - ASUS PRO Clock II Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AI Overclocking LiveDash OLED AURA: - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features: - USB BIOS Flashback® - AI Suite 3 - Ai Charger - Onboard Button: Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Armoury Crate - ASUS NODE: hardware control interface ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS USB BIOS Flashback® - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |

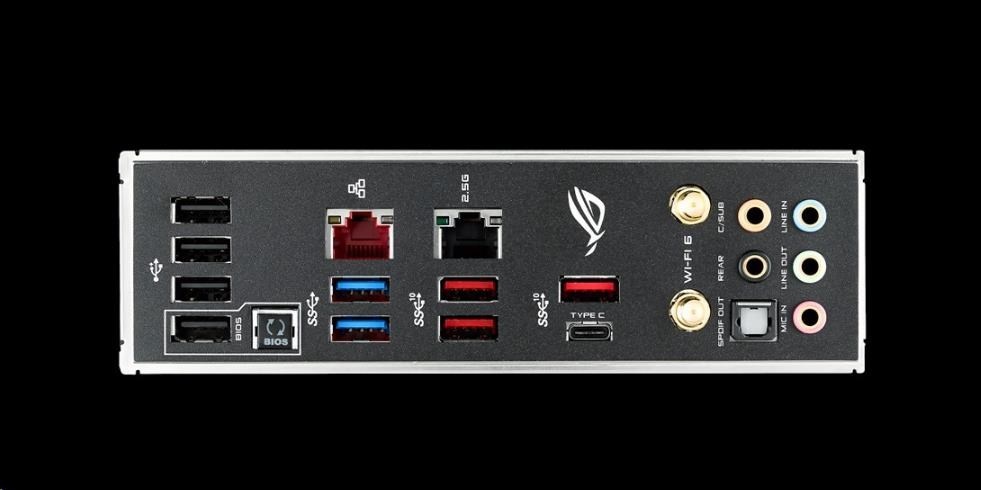

| Back I/O Ports | 1 x LAN (RJ45) port(s) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port 1 x Wi-Fi antenna port(s) 1 x USB BIOS Flashback® Button(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
| Internal I/O Ports | 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x CPU_OV jumper 1 x M.2 Fan Header 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |

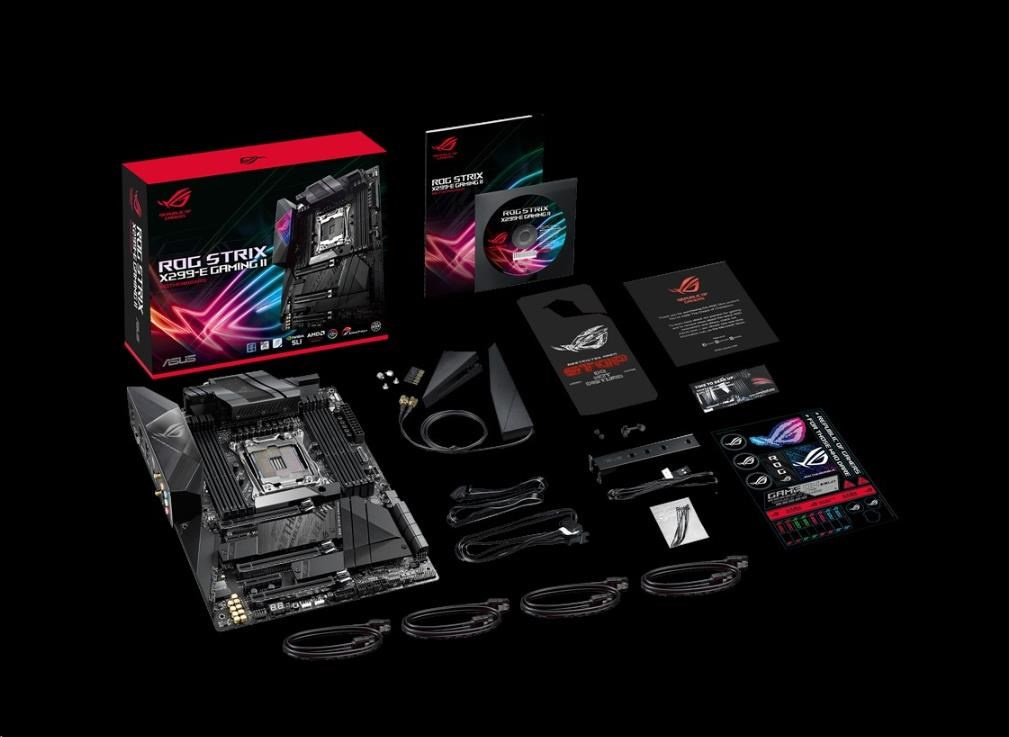

| Accessories | User's manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x Q-Connector 1 x M.2 screw kit (long screw and mount) 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Support Disc | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Note | *1 PCIe 3.0 x1 slot share with USB3.2 Gen2 front panel connector. *2 M.2_2 and M.2_3 support 44-Lane CPU (Intel® Core™ i7 9000 X-Series CPU and above). *3 The M.2 PCIe mode sources from Intel® X299 Chipset supports Intel® Optane Memory *4 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 2066
Chipset:
Intel
PCI Express x16:
3
Podpora RAID:
1
Podpora RAID:
5
Podpora RAID:
10
COM port:
Ne
LPT port:
Ne
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
Wi-Fi
Pro procesory:
Intel
Počet paměťových slotů:
8
DisplayPort:
0
TPM:
Ne
USB 2:
8
PCI:
0
M.2 slot:
3
SATA 3:
8
VGA:
0
DVI:
0
HDMI:
0
Led Header:
Ano
PCI Express x1:
1
USB C:
1
LAN:
1Gbit/s
Aktuální cena produktu je14451Kč
s dph
