ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX
Popis
Parametry
Hlídací pes

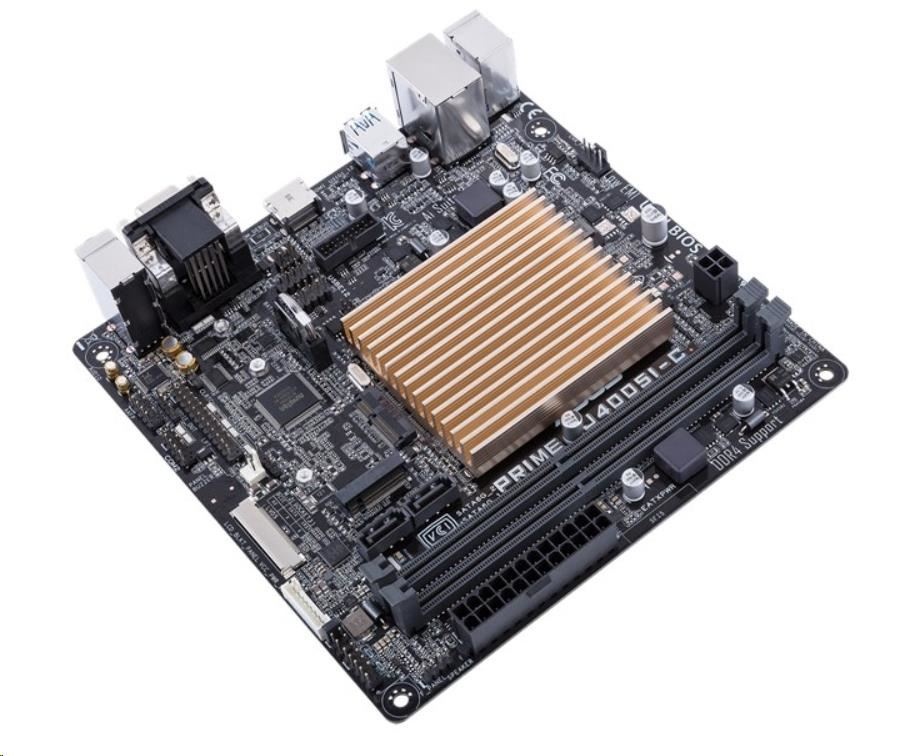

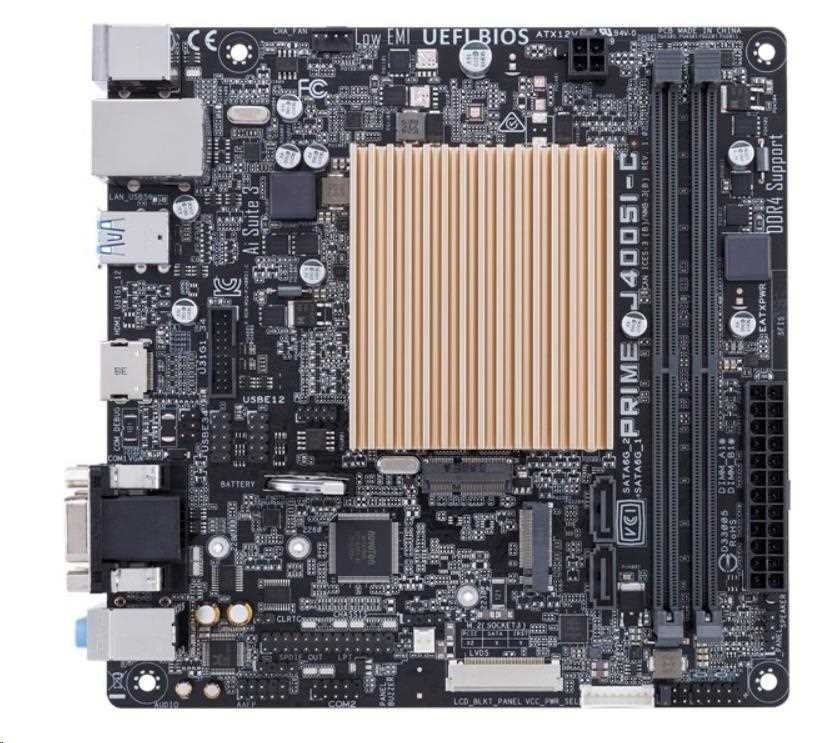

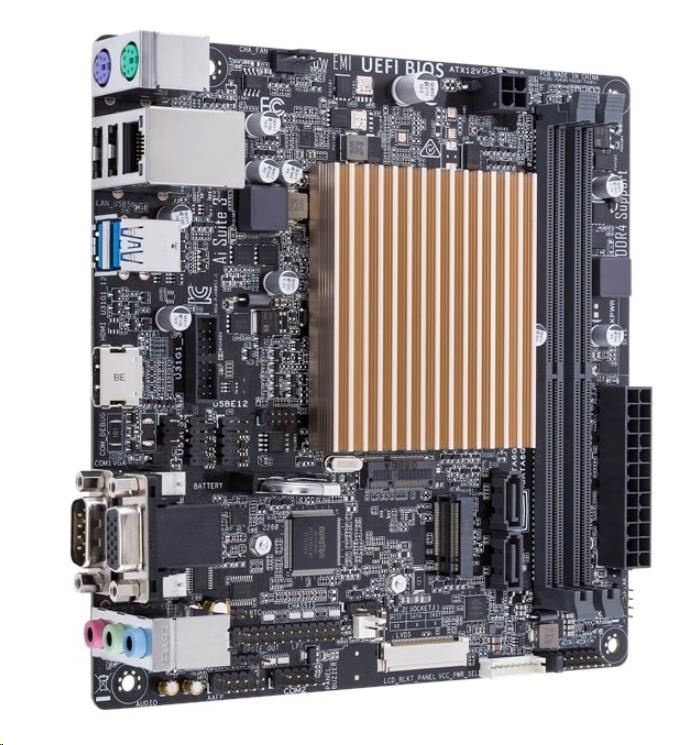

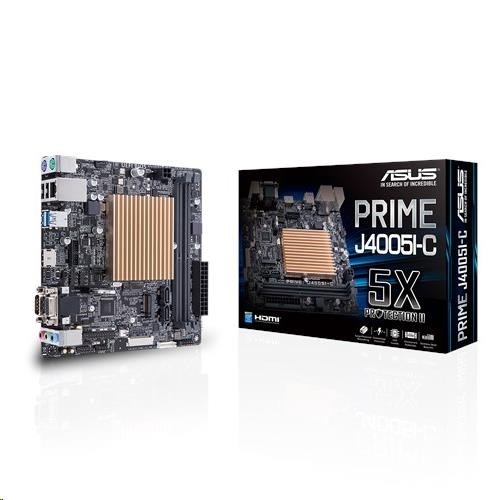

PRIME J4005I-C
Low-power, fan-less motherboard for Intel Celeron® SoC J4005 processor, with 2 x DDR4 2400/2133 MHz, 5X Protection II and HDMI/D-Sub/LVDS support.
- Proven quality - 5X Protection. 1000+ compatible devices. 8000+ validation hours.
- AI Suite 3:One-stop access to innovative ASUS features
- New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
TECHNICAL SPECFICATION
| Memory | 2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1 Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB (for iGPU exclusively) Supports up to 3 displays simultaneously |
| Storage | 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode) 2 x SATA 6Gb/s port(s), |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports | Built-in Controller: 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Built-in Controller: 2 x USB 2.0 port(s) (2 at back panel, ) GL852G USB Hub: 4 x USB port(s) (4 at mid-board) |
| Special Features | ASUS 5X Protection II: - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-DIMM |
| Operating System Support | Windows® 10 64-bit Linux |

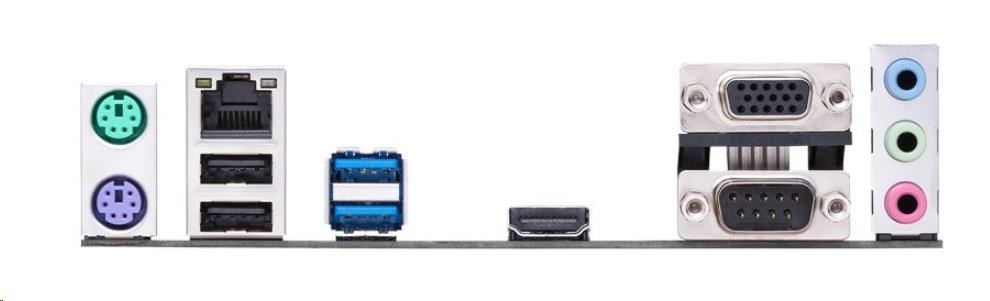

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode) 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x Panel off header 1 x LVDS connector(s) 1 x System panel connector 1 x Flat panel display brightness connector 1 x Display panel VCC power selector 1 x Speaker connector |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| Form Factor | Thin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Note | *1 We recommend that you use 8GB or less memory modules. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Integrovaný procesor
Chipset:
Intel
PCI Express x16:
0
Podpora RAID:
Bez RAID podpory
COM port:
Ano
LPT port:
Ano
Formát základní desky:
Mini-ITX
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Integrovaný procesor
Počet paměťových slotů:
2
DisplayPort:
0
TPM:
Ne
USB 2:
2
USB 3:
4
PCI:
0
M.2 slot:
2
SATA 3:
2
VGA:
1
DVI:
0
HDMI:
1
Led Header:
Ne
PCI Express x1:
0
USB C:
0
LAN:
1Gbit/s
Aktuální cena produktu je3089Kč
s dph
